Branding the Remote Update System

This section is relevant only for Sentinel LDK Products/Entitlements.

The Sentinel Remote Update System (RUS) is an executable utility that you can customize (brand), and send to your end users to enable secure, remote updating of the license and memory data of Sentinel protection keys after they have been deployed.

RUS branding enables you to associate the RUS utility with the Batch Code of the keys that you want to update. You can also define, format, and preview the GUI that is to be displayed in the RUS.

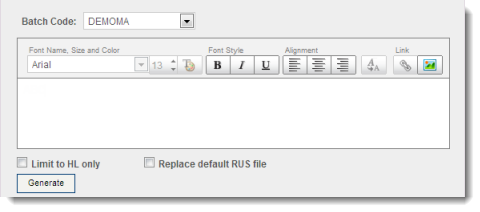

To brand an RUS executable:

• Brand RUS by defining the text to be displayed when RUS is launched.
  • You can format the text as required.
  • You can insert a link.
  • You can insert an image, which should be in PNG format.
• If you select Limit to HL only, the generated RUS tool will only be available for HL keys.
• If you select Replace default RUS file, the generated RUS tool will overwrite the default RUS tool of Sentinel EMS. The default RUS tool is available for download in the Generate License and Activation screens (for example, see Generating a V2C File to Manually Activate a Product).
• Click Generate. The File Download dialog box appears.
• Save the file.
